고해상도 오실로스코프를 이용한 PSD 스위칭 측정

이슈 :

스위칭 손실(예시에서 "Power")은 스위칭 주기(턴 온/턴 오프) 동안 출력 전압(VDS)과 전류(Id)를 곱하여 계산됩니다. 출력 전압이 수백 볼트일 때 ON 전압은 몇 볼트에 불과하지만, 일반적인 8비트 오실로스코프에서는 AD 해상도가 1~2 비트에 불과하여 정확한 측정이 불가능합니다.


솔루션 :

12비트 ADC를 탑재한 DLM5000HD는 기존의 8비트 오실로스코프보다 16배 높은 해상도를 제공하여, 넓은 동적 범위 측정에 이상적입니다. 또한, SiC/GaN과 같은 차세대 소자는 고속 상승 스위칭 전압을 가지며, 이로 인해 고전압 링잉이 발생할 수 있습니다. 이 링잉 억제는 인버터 설계에서 중요한 요소입니다. 고해상도 오실로스코프는 이러한 링잉/노이즈 관찰에도 매우 효과적입니다.



Example: SiC MOSFET double pulse test waveform

예시: SiC MOSFET 더블 펄스 테스트 파형



PSD Switching Measurement with High Definition Oscilloscope

Issue:

The switching loss ("Power" in the example) is calculated by multiplying the output voltage(VDS) and current(Id) in the switching period (turn ON/turn OFF). The ON voltage is only a few volts for an output voltage of several hundred volts, but with a typical 8-bit oscilloscope, this is only 1 to 2 bits of AD resolution, and highly accurate measurements are not possible.

Solution:

The DLM5000HD with 12-bit ADC has 16 times the resolution of conventional 8-bit oscilloscopes, making it ideal for such wide dynamic range measurements. In addition, next-generation devices such as SiC/GaN have a high-speed rising switching voltage, which causes high-voltage ringing, and suppressing it is an important point in designing inverters.  High Definition Oscilloscope is also effective for such ringing/noise observations.




Example: SiC MOSFET double pulse test waveform

Example: SiC MOSFET double pulse test waveform

Related Industries







Related Products & Solutions

701927 Differential Probe 1400V / 150 MHz thumbnail

701927 Differential Probe 1400V / 150 MHz

  • 701927 Isolated Differential Probe
  • 150 MHz
  • Max. Differential Voltage: ±1400 V (DC + ACpeak) at 500:1
  • Probe Power: dedicated probe interface For DLM, DL, and SB5000 series
701928 Current Probe 100 MHz / 30 ARMS thumbnail

701928 Current Probe 100 MHz / 30 ARMS

  • 701928 scope current probe
  • Front-end powered
  • Recognized automatically
  • Adjust zero position from operation of DLM2000, DLM3000, DLM4000, DL6000/DLM6000, DL9000/DLM9000. SB5000
701978 Differential Probe 1500 V / 150 MHz thumbnail

701978 Differential Probe 1500 V / 150 MHz

  • 701978 Differential Probe for Oscilloscope
  • 1500 V / 150 MHz
  • 500:1 / 50:1
  • Max. Differential Voltage：±1500 V (DC + ACpeak)
702916 Current Probe 120 MHz/ 0.5 ARMS, 5 ARMS, 30 ARMS thumbnail

702916 Current Probe 120 MHz/ 0.5 ARMS, 5 ARMS, 30 ARMS

Frequency bandwidth: DC to 120 MHz
Maximum continuous input range: 0.5 Arms/5 Arms/30 Arms
Functions with Digital Oscilloscopes, ScopeCorders and other waveform measuring instruments

702921 PBDH0400 Differential Probe 1000 V / 400 MHz thumbnail

702921 PBDH0400 Differential Probe 1000 V / 400 MHz

  • Wide-bandwidth high-voltage differential probe
  • 400 MHz bandwidth
  • Max. differential voltage: ±1000 V (DC + ACpeak) at 500:1
  • Probe power： Dedicated probe interface for DLM3000, DLM3000HD, DLM5000, DLM5000HD
702922 PBDH0400 Differential Probe 2000 V / 400 MHz thumbnail

702922 PBDH0400 Differential Probe 2000 V / 400 MHz

  • Wide-bandwidth high-voltage differential probe
  • 400 MHz bandwidth
  • Max. differential voltage: ±2000 V (DC + ACpeak) at 1000：1
  • Probe power：Dedicated probe interface for DLM3000, DLM3000HD, DLM5000, DLM5000HD
702923 Differential Probe 1000 V / 400 MHz thumbnail

702923 Differential Probe 1000 V / 400 MHz

  • Wide-bandwidth high-voltage differential probe
  • 400 MHz bandwidth
  • Max. differential voltage: ±1000 V (DC + ACpeak) at 500:1
  • Probe power: Probe power supply
702924 Differential Probe 2000 V / 400 MHz thumbnail

702924 Differential Probe 2000 V / 400 MHz

  • Wide-bandwidth high-voltage differential probe
  • 400 MHz bandwidth
  • Max. differential voltage: ± 2000 V (DC + ACpeak) at 1000:1
  • Probe power: Probe power supply
DLM3000HD Series High-Definition Oscilloscope thumbnail

DLM3000HD Series High-Definition Oscilloscope

The DLM3000HD redefines high-definition in a compact design.

  •
  • 4 analog channels
  • 8-bit logic
  • Bandwidth: 350 or 500 MHz
  • Sample Rate: up to 2.5 GS/s
  • Vertical resolution: 12-bit
  • High resolution mode: up to 16-bit
  • Measurement memory: up to 1 GigaPoints
  • History waveforms: up to 200,000 triggers
  • Synchronization function for up to 8 analog channels
  • Logic and Serial Bus Analysis
  •

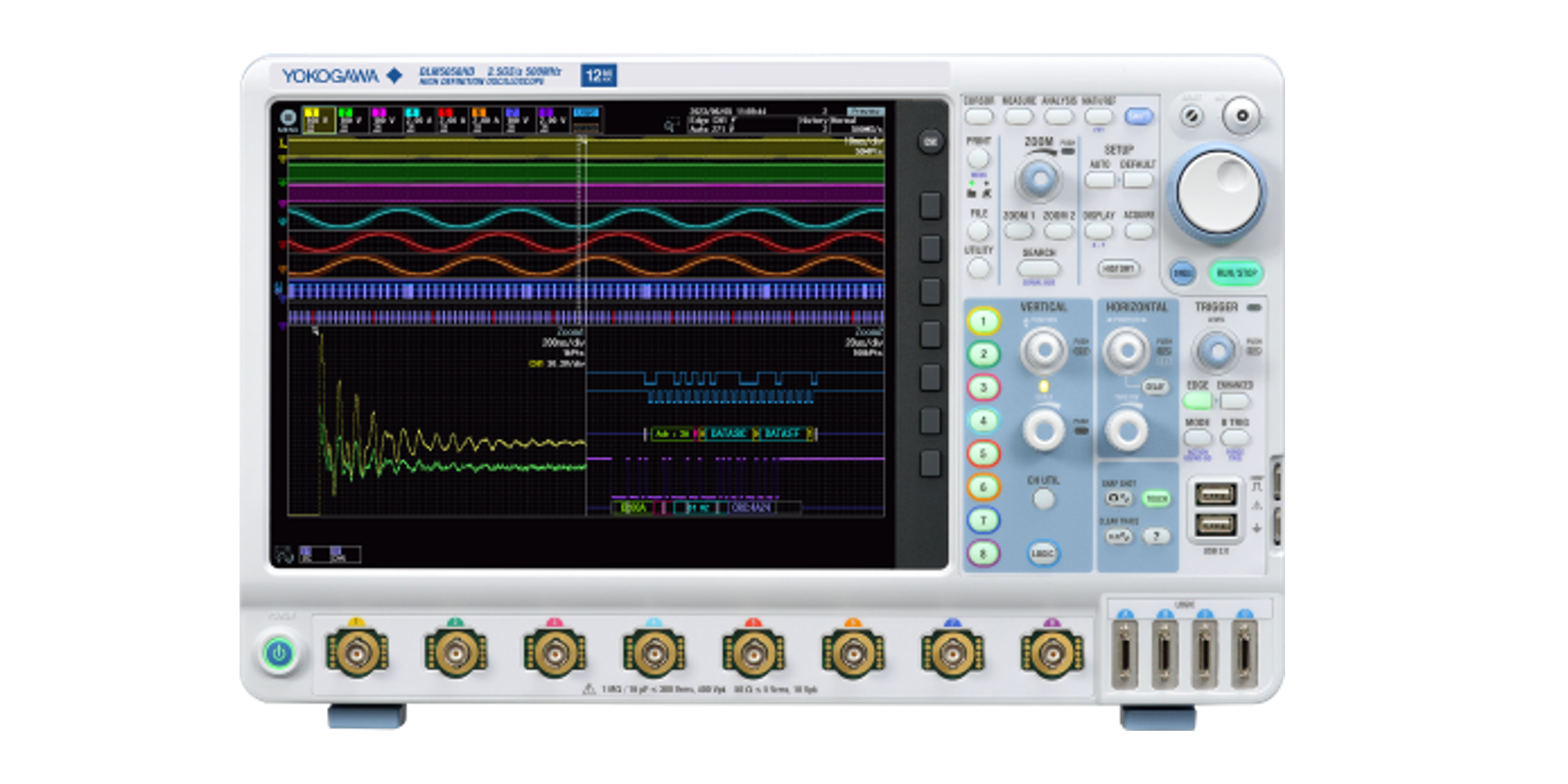

DLM5000HD Series High-Definition Oscilloscope thumbnail

DLM5000HD Series High-Definition Oscilloscope

The DLM5000HD series sets a new standard for high-definition oscilloscopes.

  • 4 or 8 analog channels
  • 16-bit logic + optional additional 16-bit logic
  • Bandwidth: 350 or 500 MHz
  • Sample Rate: up to 2.5 GS/s
  • Vertical resolution: 12 bit
  • High resolution mode: up to 16 bit
  • Measurement memory: up to 1 GigaPoints
  • History waveforms: up to 200,000 triggers
  • Synchronization function for up to 16 analog channels
  • Logic and Serial Bus Analysis

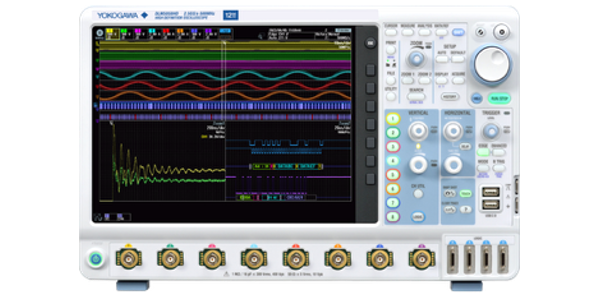

Mixed Signal Oscilloscopes thumbnail

Mixed Signal Oscilloscopes

  • Analyze analog and digital signals simultaneously
  • Advanced triggering and high-speed waveform capture
  • Power analysis, serial bus analysis, & switching loss
  •
  •
  •

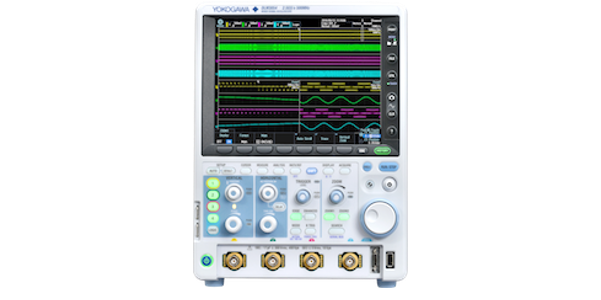

Oscilloscopes thumbnail

Oscilloscopes

Accelerate design and troubleshooting with oscilloscopes that combine high-speed sampling, long record lengths, and mixed-signal analysis. From quick debug to advanced R&D, Yokogawa oscilloscopes help you see deeper, work faster, and design smarter.
