SMU 응용 핸드북

관리자 2025-12-02 조회수 564
첨부파일(1)첨부파일 보기

SMU Application Handbook

Combining a precision current and voltage source with a high resolution digital multimeter, source measure units are precision DC instruments that can operate in all four quadrants to allow it to be used as a generator and load. As such, they have seen use in many applications where they are operated as a battery, a stimulus for transistors, a power supply, and as a test device for verifying analog to digital converters. Download the source measure unit applicaiton handbook to learn about the endless capabilties of this device.

Related Products & Solutions

GS200 DC Voltage / Current Source thumbnail

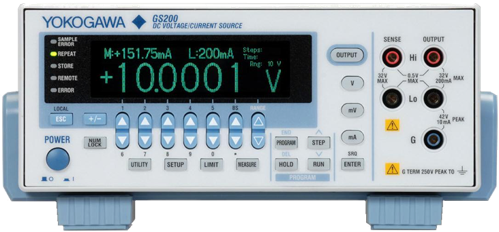

GS200 DC Voltage / Current Source

The GS200 DC Voltage/Current Source Pulse Generator from Yokogawa Test&Measurement is a low voltage/current DC source with high accuracy, high stability, and high resolution.





GS610 Source Measure Unit thumbnail

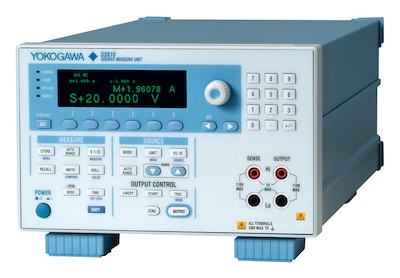

GS610 Source Measure Unit


The GS610 is made up of a programmable current and voltage source, a voltmeter, and an ammeter. Each function can be combined into numerous operation modes.

GS820 Multi Channel Source Measure Unit thumbnail

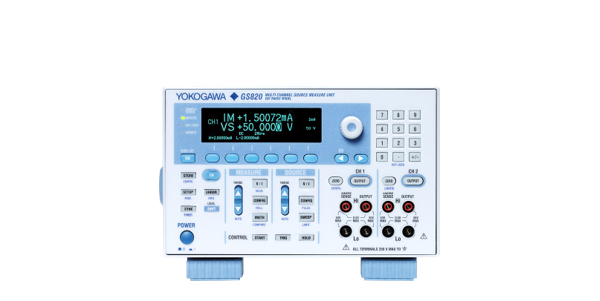

GS820 Multi Channel Source Measure Unit

The GS820 is a highly accurate and highly functional 2-channel programmable DC voltage/current source that incorporates voltage/current generation and measurement function.

Programmable DC Sources thumbnail

Programmable DC Sources

Yokogawa's instruments go beyond conventional options. They are highly accurate, highly functional with programmable voltage/current source that incorporates voltage/current generation for a broader application.

Source Measure Units thumbnail

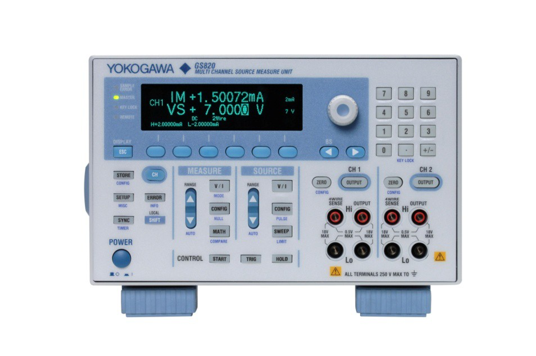

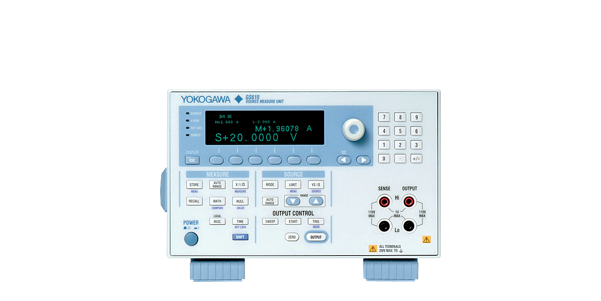

Source Measure Units

A Source Measurement Unit (SMU) is a flexible test instrument which is capable of both sourcing and measuring voltage and/or current at the same time.
