Plotting SENT data with the DL850EV ScopeCorder

관리자 2026-02-05 조회수 139

The DL850E and DL350 Vehicle Edition instruments can decode and plot SENT data, both fast and slow channels, exactly equivalent to analog input channels. This means the SENT data can be read, plotted, used with cursors and triggers, and logged to disk simultaneously with analog inputs with the DL850EV scopecorder. For R&D, validation and verification, or troubleshooting, this is a convenient and productive feature making it easier for engineers to integrate new vehicle architectures.

l Related Industries l
EVs & Transportation

Related Products & Solutions

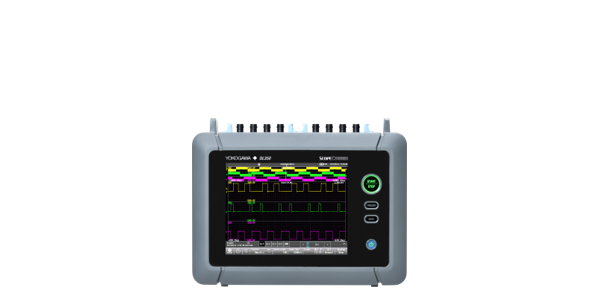

DL350 Portable ScopeCorder

A compact, battery-powered, touch screen instrument you can take into the field featuring the measurement and recording capabilities you need for maintenance and troubleshooting.

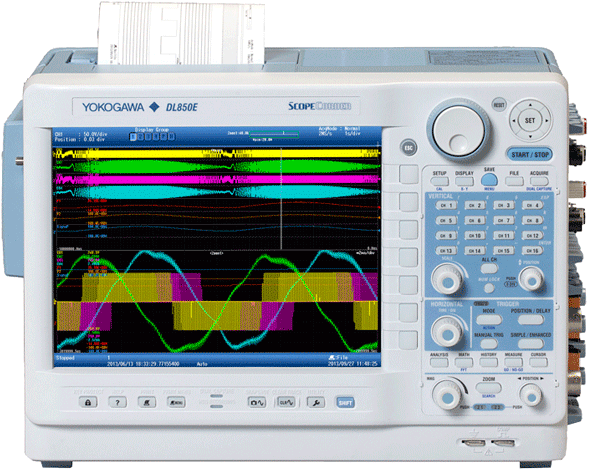

DL850E/DL850EV ScopeCorder

An all-in-one electromechanical measurement system offering the deepest measurement and analysis features to turn data into insights.

High Speed Data Acquisition

PC-based, streaming, local, or remote operation
20+ modules, isolated and versatile inputs
Up to 200 MS/s or 640 ch
Used in aerospace, automotive, energy, and manufacturing industries

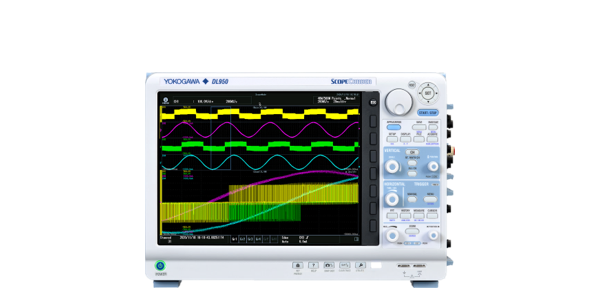

Isolated Oscilloscopes | ScopeCorders

An integrated measurement system for every electromechanical application
Modular platform combines oscilloscope and DAQ functionality
Capture high-speed transients and low-speed trends
