How to Perform SMSR Analysis of a Laser's Output with an OSA

관리자 2026-03-16 조회수 100

This video demonstrates side mode suppression ratio (SMSR) analysis using an AQ6370E OSA and explains how to adjust the signal span to capture side modes and execute SMSR analysis to detect and locate the closest peaks from a 1310 nanometer laser via a connected light source module. SMSR analysis allows engineers to quickly identify and quantify the differences between the main peak and any side peaks in terms of nanometers and power which helps ensure the quality and accuracy of a laser's output. Manufacturers want to see a single, clean peak in a laser's output without side modes or additional peaks, to indicate a laser is performing as expected.

Related Industries
Optical Communications & Networks

Related Products & Solutions

AQ2212 Frame Controller (9 Slots)

Easy-to-view color display
USB port for data storage
Remote monitoring and measurement through a LAN

AQ2212 Frame Controller (9 Slots)
AQ6370D Telecom Optical Spectrum Analyzer 600 - 1700 nm

AQ6370D Optical Spectrum Analyzer
Popular TELECOM wavelength Range of 600nm to1700nm
Ideal model for Telecommunications applications for single-mode and multi-mode optics

AQ6370D Telecom Optical Spectrum Analyzer 600 - 1700 nm
DFB Light Source, 1 or 2 CH (AQ2200)

1310, 1550, 1625 or 1650 nm
Output level: ≥10 dBm
Level stability: ±0.005 dB or less

DFB Light Source, 1 or 2 CH (AQ2200)
Optical Component Test System

Modular platform for automated optical testing
Attenuators, switches, power meters, light sources, and SMUs

Optical Component Test System

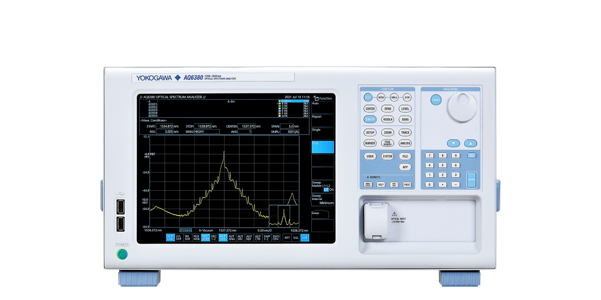

Optical Spectrum Analyzers
